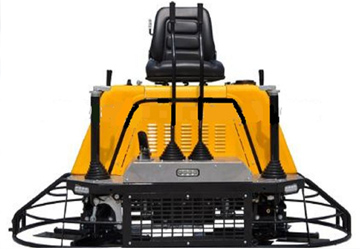

Ride on Trowel Machine
Jamshedji Constro Equipment is the leading and most reliable Ride on Trowel Machine
- It is used to extract slurry, compact, smooth and polish the concrete surface.
- HONDA engine, excellent performance, easy to start-up.
- The transmission is with big modulus and al-alloy case, free from maintenance.
- Trowel supporting arm is made of heat-treated steel with super diameter carbon structure.
- Scientific designed centrifugal clutch gear unit with large torque and long life.
- Adjusting height mechanism of handrail, storage erectly, easy to transport.
- Plastic treated, anti-rust, anti-corrosion and beautiful.
Technical Specification
| Type | RWMG236C |
|---|---|
| Working | |
| Operation mode | Ride-on, hydrualic handle |
| Working width | 75in |
| Working speed | 80-150rmp |
| Blade | |
| Blade quantity | 8 |
| Blade size | 350x150mm |
| Fixed hole distance | 4.75 in |
| Engine | |
| Model | HONDA GX690 |
| Type | Gasoline engine, air cooled, 4stroke, OHV, double cylinder |
| Power | 23hp/3600rpm |
| Fuel tank volume | 15L |
| Lubricant L | 1.9L |
| Fuel consumption | 313g/kWh |
| Dimension | |
| Total length | 2060mm |
| Total width | 1030mm |
| Total height | 960mm |
| Packing size | 2140x1100x1100mm |
| Weight | |
| Weight | 400kg |
