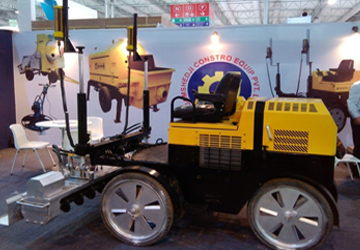

Ride On Laser Screed Machine
Jamshedji Constro Equipment is the leading and most reliable Ride On Laser Screed Machine.
Characteristics
- JAMSHEDJI is coming up with a new trend in industrial flooring The Laser Screed. Where huge areas of flooring is to be done this machine is used to do the flooring of maximum slab thickness 30 cm.
- Recommended speed is 5 m/min thus you can expect to cover 2500 m in a working period of 8 hours.
- The machine has cleaning system, pressure bomb 70 bars, to expediently clean the machine. The operator has a comfortable seat to reduce fatigue during operation.
- The operator has a control panel installed in front to inspect the result of floor easily.
- The Laser Screed can satisfy the construction requirement of large area and high plainness and levelness.
- We are attaching a brochure with all technical details and prices for your scrutiny.
Technical Specification
| Engine | |
| Model | HONDA GX630 Electric Start |
| Type | Gasoline Engine, Air Cooled , 4 Stroke , OHV , Double Cylinder |
| Power | 20HP / 3600rpm |
| Fuel Tank Volume | 40L |
| Lubricant | 1.9L |
| Fuel Consumption | 313 g/kwh |
| Running Device | |
| Driving | 4 Hydraulic Drive Motor |
| Wheel | Solid Puncture Proof Tyre |
| Running Speed | 0-35 m/min |
| Screed System | |
| Screed Head Type | Fixed Type |
| Width | 2500mm |
| Paving Type | With Auger |
| Auger Force | Hydraulic Motor |
| Exciting Force | 500N |
| Vibration Frequency | 50HZ |
| Screed Plate Height | 330 mm |
| Laser Control System | |
| Control Type | Microcomputer Laser Scan |
| Control Effect | Flat , Slop Or Double Slope (3D) |
| Operation Mode | |
| Chair Position | Forward Type |
| Action | Hand Grip Control, Infinite Variable Speed |
| Steering | Hydraulic Control |
| Cleaning System | |
| Power | Hydraulic Motor |
| Theoretical Flow | 20L/min. |
| Rated Pressure | 7 Mpa |
| Size & Weight | |
| Outline Dimension | 2559 x 2760 x 2330 mm |
| Weight | 1080 Kg |
